Jiangsu Jinling vacuum rake paddle drying machine industry standard drafting unit. This machine is a novel horizontal intermittent vacuum filtration and drying integrated equipment improved on the basis of introducing and absorbing foreign filtration and drying technology (it can produce a variety of three-in-one filtration and drying equipment). It completely replaces the traditional single filtration and drying equipment, so that it can complete the whole process of filtration, drying and solid unloading in the same equipment. At the same time to achieve full closure, the whole process of continuous operation of production, the process is more suitable for the production of anaerobic, toxic products. The overall design is more compact, the processing capacity and drying efficiency are greatly improved, and it can completely replace the imported "three-in-one" equipment. Products are widely used in pharmaceutical, chemical, new materials, pesticides, food and other industries.

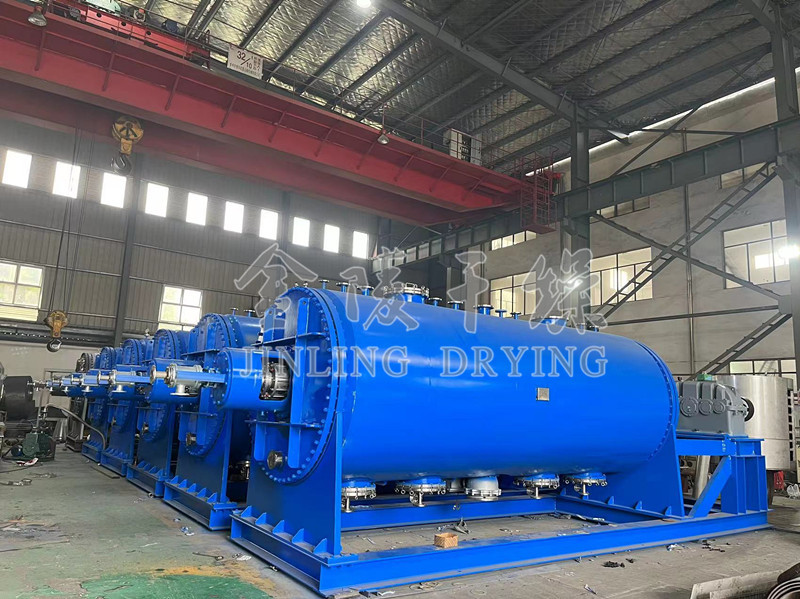

The vacuum pressurized rake filter is designed for horizontal structure, and the upper part of the tank is provided with feed port, gas phase outlet, manhole, nitrogen port, steam inlet and outlet, etc., and the steam can be heated in the jacket of the cylinder. The upper part of the tank is a steam inlet, the lower part is a condensate outlet, and the steam is injected to complete the heating process: the bottom of the tank is provided with a plurality of replaceable filter plates, and is provided with a vacuum port, through a vacuum pump or vacuum system, so that the tank is in a vacuum state, to complete the pumping filtration process: when heating and drying, the upper gas phase outlet through the vacuum system in the drying process to remove the evaporated solvent: Motor and reducer through the coupling drive spindle rotation (shaft through steam heating), so that the material constantly up and down, left and right turn, fully mixed, constantly replace the heating surface, so that the material is heated evenly, water (or solvent) evaporated by the vacuum pump, so as to complete the purpose of filtration and drying.
