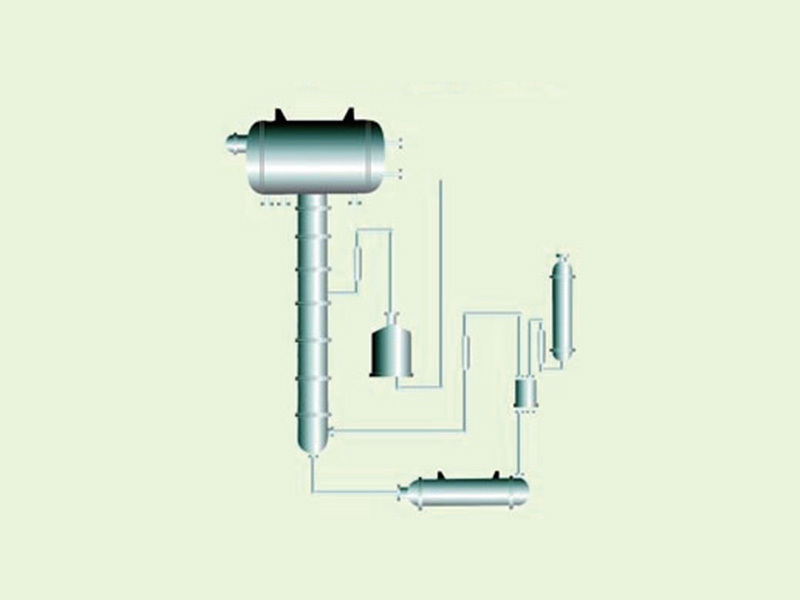

JH Ethanol Distiller

The equipment takes advantage of the principle that the boiling point of ethanol is lower than the boilig point of waterand its solution, to distill the recycled ethanol solution with the heating temperature that is slightly higher the boilingpoint of ethanol.The vapor of concentrated ethanol will be generated after treated by the distillation tower, and it can berecycled once cooled by the condenser. Eventually, the alcohol with the concentration that meets the requirement will bemade. This equipment has five main parts.Other accessories may apply if necessary.

Category

Parameter download

Descriptions

◆The equipment takes advantage of the principle that the boiling point of ethanol is lower than the boilig point of waterand its solution, to distill the recycled ethanol solution with the heating temperature that is slightly higher the boilingpoint of ethanol.The vapor of concentrated ethanol will be generated after treated by the distillation tower, and it can berecycled once cooled by the condenser. Eventually, the alcohol with the concentration that meets the requirement will bemade. This equipment has five main parts.Other accessories may apply if necessary.



Applications

◆This equipment is used to recover dilute ethanol for industries such as pharmaceutical industry.food industry.lightengineering industry, and chemical industry. It is also applicable for distilling other solvents such as methanol.

◆Depending on the requirements of the user, dilute ethanol of about 30° can be ditiled into ethanol of 90-95 °. if theconcentration of the ethanol in the final product is high according to the requirement, the reflex ratio can be increased, inwhich case, the product rate should decrease accordingly.

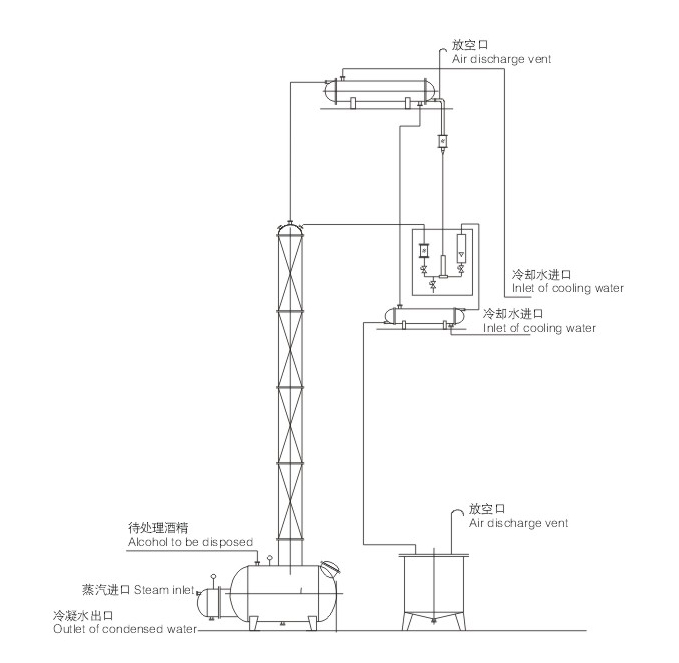

Process Chart

Technical Specifications



Model

Diameter of
Tower (mm)

Volume
of Tower (L)

Height of
Tower (mm)

Volume
of High Level Tank

Condensing Area
(m2)

Cooling
Area (m2)

Heat
Exchange Area (m2)

Recovery Capacity
(kg/h)

Recovery
Concentration (%)

T-200

ф200

1000

6000

1000

5

1

3.0

45-50

>90

T-300

ф300

1500

7000

1000

9

1.5

6.0

90-110

T-400

ф400

2000

7000

2000

11

2.2

6.5

180-200

T-500

ф500

2500

7000

2000

18

4

10

190-310

T-600

ф600

2500

7500

2000

25

6

15

430-450

T-800

ф800

3000

7500

2500

45

8

26

750-780

Note: Feed concentration: 30% -80%, reflux ratio depends on the feed concentration.

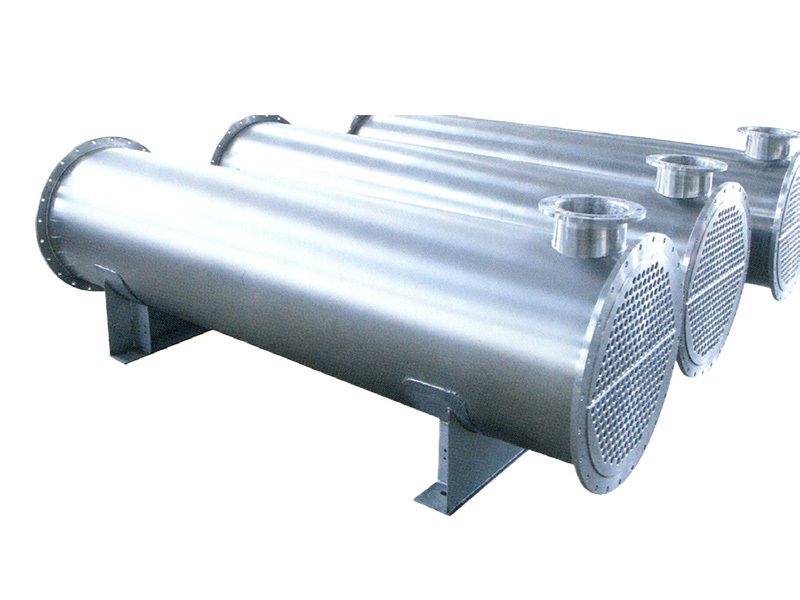

Related Equipment
