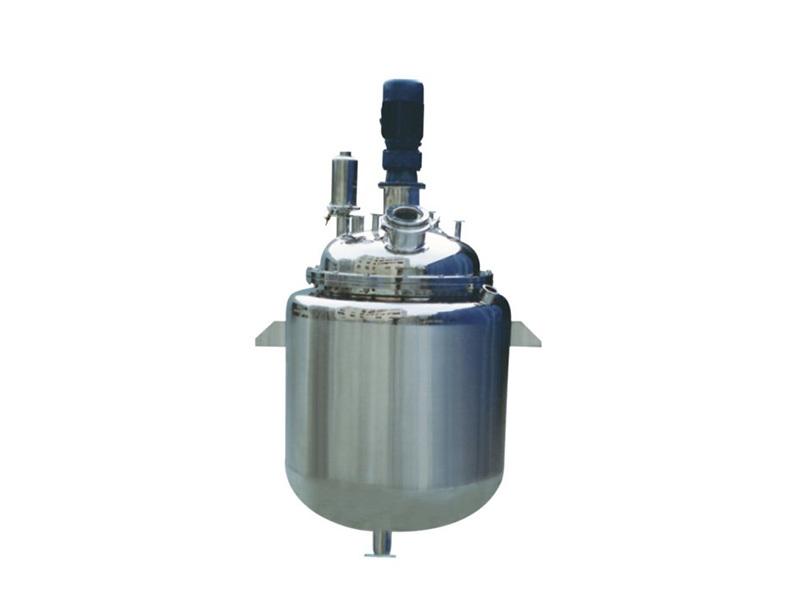

FYG Reaction Tank
FYG Reaction Tank
FYG Reaction Tank
Descriptions
◆This machine is used across pharmaceutical industry. chemical industry,food industry. and light engineeringindustry for the production processes such as hydrolysis,neutralization, crystallization, distillation and evaporation.There are different mixing mechanisms,including anchor mixing, frame mixing, and paddle mixing. The sealingmechanism is usually mechanical sealing. Different structures can be used for heating and cooling, such as jacket,semi-tube, and coil. Heating methods can be steam, electricity, or thermal oil, depending on the working conditionsand requirements for processing such as resistance for acid and alkali, high temperature,wear and tear, andcorrosion.This machine can be custom made to meet the specific requirements of our clients.
Technical Specifications
|
Model |
FYG100 |
FYG200 |
FYG500 |
FYG1000 |
FYG1500 |
FYG2000 |
FYG2500 |
FYG3000 |
FYG4000 |
FYG5000 |
|
Volume(L) |
100 |
200 |
500 |
1000 |
1500 |
2000 |
2500 |
3000 |
4000 |
5000 |
|
Nominal Diameter (mm) |
500 |
600 |
800 |
1000 |
1200 |
1200 |
1400 |
1400 |
1500 |
1600 |
|
Nominal Pressure in The Kettle (MPa) |
0.25~0.5 |
|||||||||
|
Nominal Pressure in The Jacket (MPa) |
0.30 |
|||||||||
|
Motor Power (kW) |
1.1 |
1.5 |
2.2 |
4.0 |
4.0 |
4.0 |
5.5 |
5.5 |
5.5 |
7.5 |
|
Blending Rotation Speed (r/min) |
85 |
|||||||||
|
Vessel Type |
Class I pressure vessels |
|||||||||
