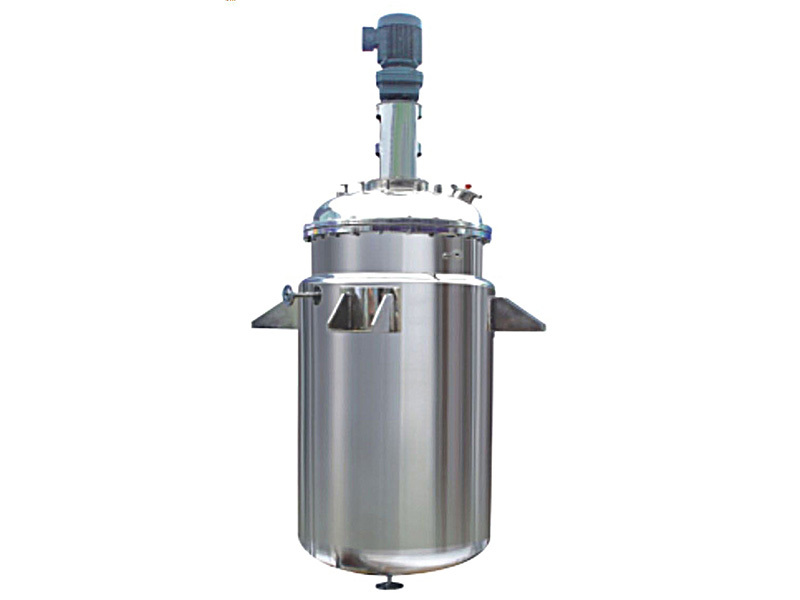

FXG Fermentation Tank

This equipment is designed for mixing and fermenting the raw materials. It has the internalcirculation structure.Foams will be dispersed and broken through the mixing process. Inside thetank, asepsis respiration system or asepsis fermentation system with compression is installed.The tank body is not covered with jacket.Circulation of heating and cooling will be accomplishedthrough the heating and cooling applied to the media.

Category

Parameter download

Descriptions

◆This equipment is designed for mixing and fermenting the raw materials. It has the internalcirculation structure.Foams will be dispersed and broken through the mixing process. Inside thetank, asepsis respiration system or asepsis fermentation system with compression is installed.The tank body is not covered with jacket.Circulation of heating and cooling will be accomplishedthrough the heating and cooling applied to the media.

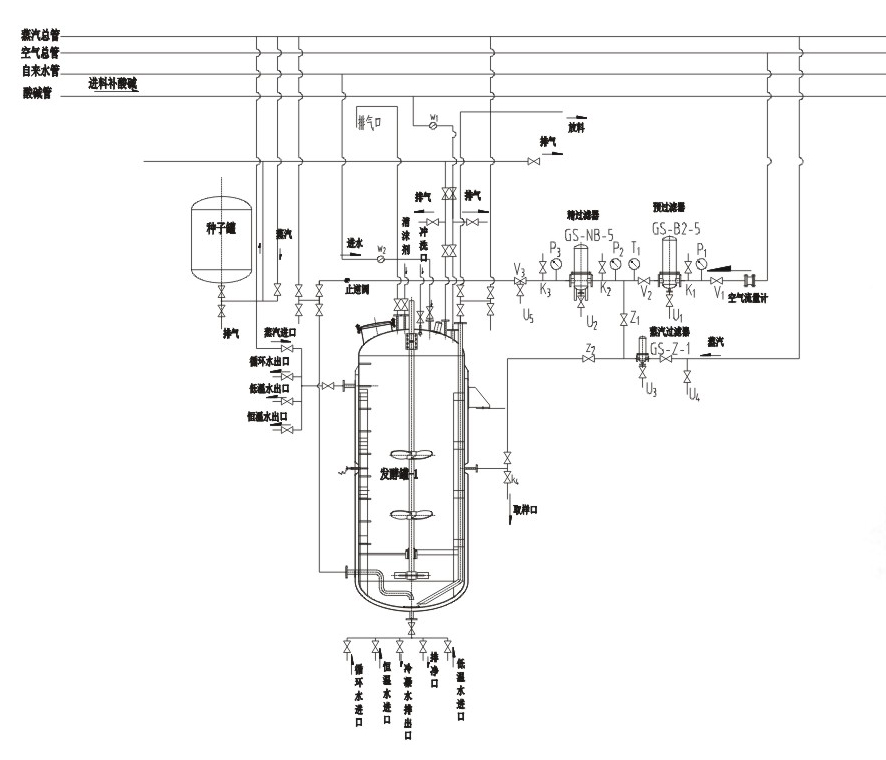

Process Chart



Technical Specifications



Model

FXG0.05

FXG0.1

FXG0.2

FXG0.5

FXG1.0

FXG2.0

FXG5.0

FXG10.0

FXG20.0

FXG50.0

FXG60.0

Volume(L)

50

100

200

500

1000

2000

5000

10000

20000

50000

60000

Diameter (mm)

400

500

500

700

900

1100

1400

1800

2300

3100

3200

Height (mm)

990

1135

2330

2600

2900

3800

4545

5250

6550

8550

10730

Pressure Inside Tank (MPa)

0.2

Pressure Inside Jacket (MPa)

0.3

Number of Blade

2

2

2

3

3

3

3

3

4

4

4

Mixing Speed(rpm)

<360

<360

<360

<220

<180

<136

<136

<125

<110

<110

<110

Mixing Power (kW)

0.55

0.55

0.75

1.1

3

3

5.5

11.5

23

55

55

Heating Type

Jacket                                                                  Heat-exchange tube
