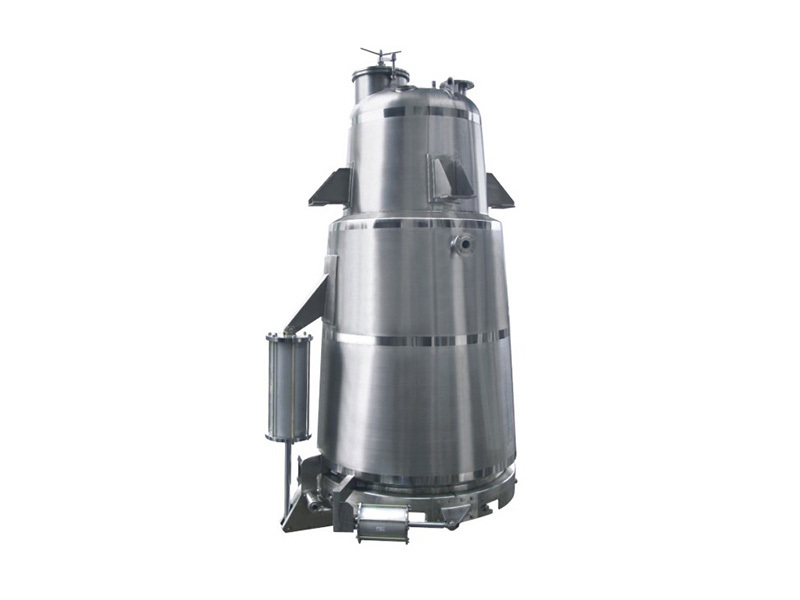

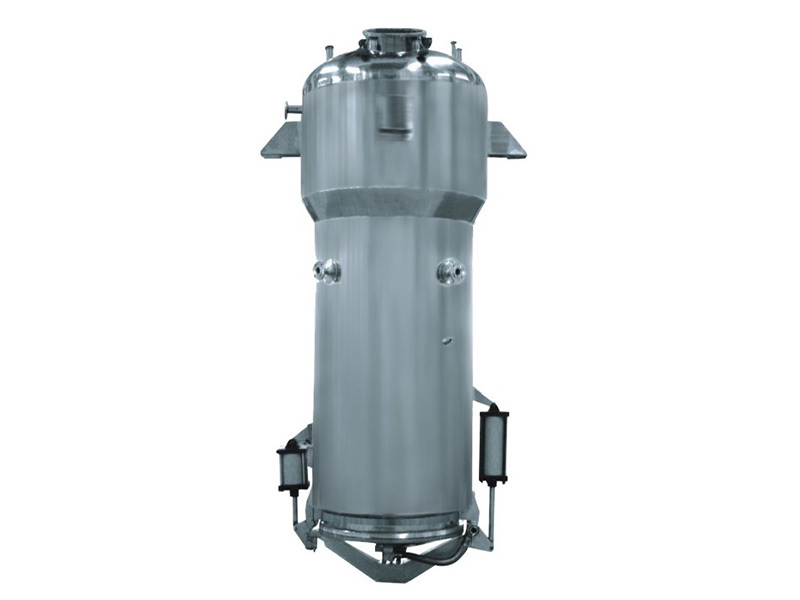

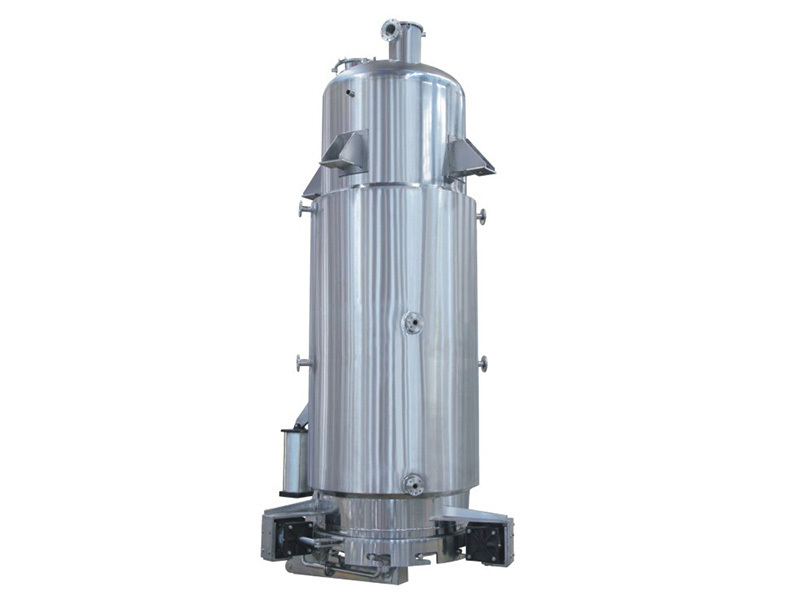

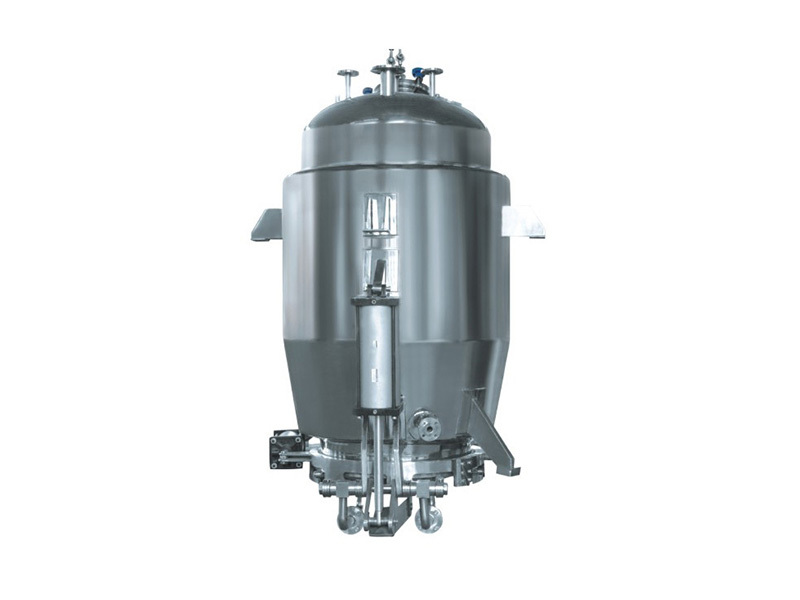

TQ Multifunctional Extracting Tank
Key words
Category
Enquiry
Parameter download
TQ Multifunctional Extracting Tank
TQ Multifunctional Extracting Tank
TQ Multifunctional Extracting Tank
TQ Multifunctional Extracting Tank
Applications
◆This cquipment can be used across traditional Chinese medicineindustry. food industry. chemical industry under operating conditionssuch as atmospheric pressure.micro-pressure.water decoction， warmdipping, hot reflux,forced circulation，percolation, extraction of aromaticoil, and recovery of organic solvents.The most prominent feature ofthe inverted cone type extraction tank is that the slag extraction is veryconvenient, and the heating is effective. The tank is equipped with CIPcleaning with automatic rotating spray ball,temperature measurementhole, explosion-proof inspection hole lamp.inspection glass, and ouick-open feed port to ensure easy operation and to meet GMP standards.The complete set of equipment supply includes: demister,condenser,cooler, oil-water separator,filter, cylinder console and other accessories.
Process Chart
Technical Specifications
|
Model |
TQ-0.5 |
TQ-1 |
TQ-2 |
TQ-3 |
TQ-4 |
TQ-6 |
TQ-8 |
TQ-10 |
|
Volume |
600 |
1200 |
2300 |
3200 |
4300 |
6300 |
8500 |
11000 |
|
Design Pressure Inside the Tank |
0.09 |
|||||||
|
Design Pressure Inside the Jacket |
0.3 |
|||||||
|
Diameter of Feed Port (mm) |
400 |
400 |
400 |
400 |
500 |
500 |
500 |
600 |
|
Heating Area (m2) |
2.4 |
3 |
4.7 |
6.8 |
8 |
10 |
12 |
13 |
|
Condensing Area(m2) |
3 |
4 |
5.4 |
8 |
14 |
18 |
22 |
24 |
|
Cooling Area(m2) |
1 |
1 |
1 |
1.5 |
1.5 |
2 |
2 |
3 |
|
Filtering Area(m2) |
0.25 |
0.25 |
0.25 |
0.25 |
0.25 |
0.30 |
0.30 |
0.30 |
|
Diameter of Residuals Discharge Port (mm) |
600 |
800 |
800 |
1000 |
1000 |
1200 |
1400 |
1500 |
|
Steam Consumption (t/h) |
285 |
285 |
346 |
570 |
660 |
718 |
903 |
1140 |
|
Water Consumption (t/h) |
2.1 |
2.1 |
2.5 |
4.2 |
4.5 |
5.5 |
6.7 |
6.7 |
|
Electric Power (kW) |
2.2 |
2.2 |
3 |
4 |
5.5 |
5.5 |
7.5 |
7.5 |
|
Stirring Speed (r/min) |
36 |
36 |
36 |
36 |
36 |
36 |
36 |
36 |
Note:
1.TQ multi-functional extraction tank can be combined into a dynamic extraction system after the necessary devices are added.
2.Design pressure, heating area, direct feed port , fitering type, and diameter of slag discharge port can be custom made according to the specific requirements of the user.
3.The user can decide if a strring system is necessary and which stiring type to choose according to their own process requirements.
