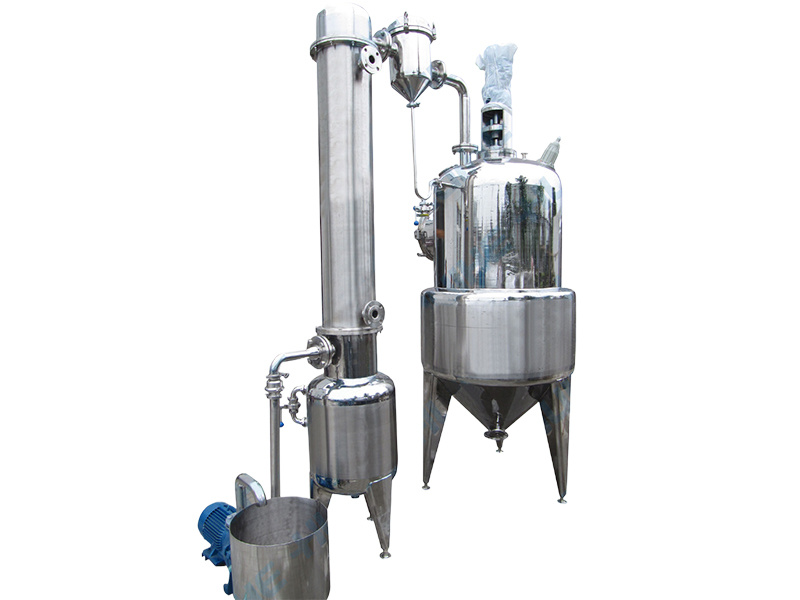

JN Vacuum Evaporator
Applications
◆This series of equipment is mainly composed of five parts: the main body of theevaporation tank, the condenser, the vapor-liquid separator, the cooler, and the receiver.Evaporation tank has a jacket heating structure, and the cooler has a coil structure. Thistype of machine can be used across pharmaceutical industry.food industry,chemicalindustry， and other industries for the concentration of liquids. It can also be used forrecycling alcohol and simple reflux extraction.

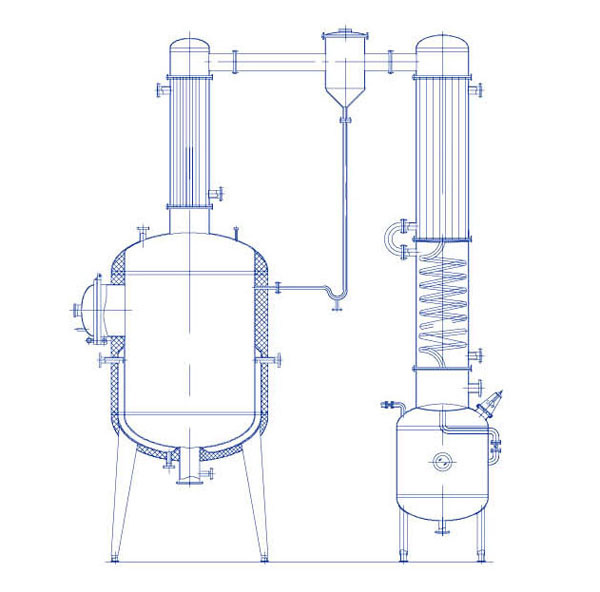

Process Chart
Technical Specifications
|
Model |
JN50 |
JN100 |
JN200 |
JN300 |
JN500 |
JN700 |
JN1000 |
JN2000 |
|
|
Vapor Pressure (MPa) |
< 0.25 |
||||||||
|
Eveporating Ability (kg/h) |
20 |
40 |
60 |
80 |
100 |
130 |
160 |
350 |
|
|
Heating Area (m2) |
0.4 |
0.6 |
0.8 |
1.1 |
1.2 |
2.0 |
2.5 |
5.5 |
|
|
Condensing Area (m2) |
1.2 |
1.7 |
2.4 |
3.0 |
3.2 |
3.6 |
4.5 |
14 |
|
|
Cooling Area (m2) |
0.25 |
0.35 |
0.45 |
0.6 |
0.7 |
0.85 |
1.1 |
3 |
|
|
Storage Capacity (L) |
I5 |
45 |
60 |
76 |
100 |
125 |
140 |
185 |
|
|
Energy Consumption (kg/h) |
23 |
46 |
70 |
92 |
I15 |
150 |
185 |
403 |
|
|
Vacuum Level (MPa) |
-0.08 |
||||||||
|
Vessel Type |
Category I pressure vessel |
||||||||
|
Weight (kg) |
410 |
470 |
605 |
715 |
862 |
1015 |
1250 |
2600 |
|
|
Overall Size (Reference) (mm) |
L |
1200 |
1350 |
1700 |
1800 |
2100 |
2400 |
2390 |
2730 |
|
W |
600 |
750 |
800 |
950 |
1200 |
1300 |
1300 |
1500 |
|
|
H |
2200 |
2200 |
2700 |
2850 |
3400 |
3400 |
3720 |
4700 |
|
