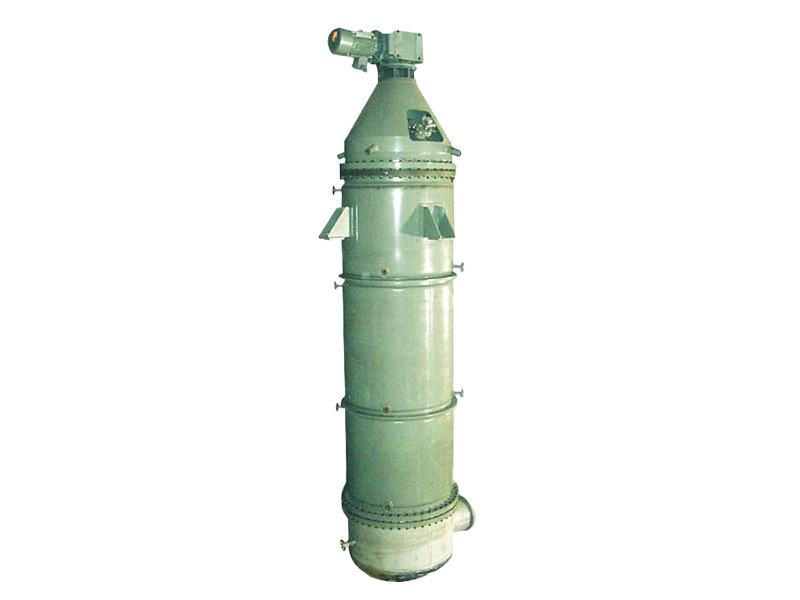

DZ Molecular Distillation Equipment

Molecular distillation, also called short-path distillation, is mainly used for the gentle separationof materials with high heat sensitivity or high boiling point. lt is widely used for deodorization,purification, concentration and other processes across petrochemical industry, fine chemicalindustry. pharmaceutical industry, pesticide industry, food industry, oil industry, and environmentalprotection industry.

Category

Parameter download

Descriptions

◆Molecular distillation, also called short-path distillation, is mainly used for the gentle separationof materials with high heat sensitivity or high boiling point. lt is widely used for deodorization,purification, concentration and other processes across petrochemical industry, fine chemicalindustry. pharmaceutical industry, pesticide industry, food industry, oil industry, and environmentalprotection industry.



Features

◆The vacuum level to operate molecular distillation is high, which is around lPa;

◆Molecular distillation has a low evaporation temperature, which is much lower than the boilingpoint of the material;

◆The material used for molecular distillation has a short heating time;

◆The efficiency of separation is high.

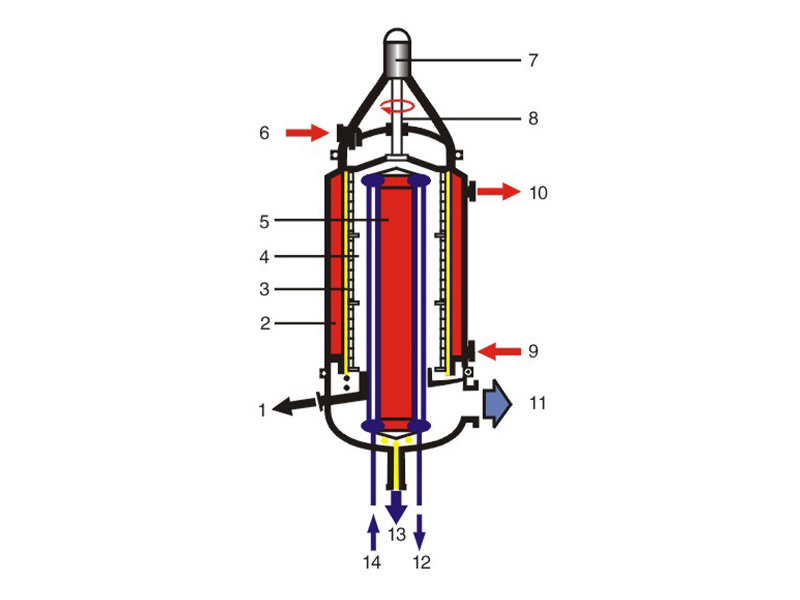

Process Chart





1.Heavy Product Outlet

2.Jacket

3.Complete System

4.Vacuum Silo

5.Inner Condenser

6.Feeding

7.Motor

8.Driving Shaft with Material Distribution Plate

9.Oil lnlet

10.Oil Outlet

11.Vacuum

12.Cooling Medium Outlet

13.Light Product Outlet

14.Coaling Medium lnlet



Technical Specifications



Model

Evaporation Area (m2)

Condensing Area (m2)

Height (mm)

Vessel Diameter (mm)

Weight (kg)

DZ0.06

0.06

0.06

1000

80

20

DZ0.1

0.1

0.11

1100

125

40

DZ0.3

0.3

0.38

1600

160

100

DZ0.75

0.75

1.2

2100

280

200

DZ1.5

1.5

2

3200

350

500

DZ3

3

5

3800

500

900

DZ4.5

4.5

7.5

5000

500

1100

DZ6

6

10

5300

800

1500

DZ9

9

16

6200

1000

3000

DZ12

12

24

6500

1200

6000

DZ18

18

36

7200

1500

9000

DZ24

24

50

8500

1500

12000

DZ36

36

80

9300

2000

23000

DZ50

50

120

11000

2200

30000
