Features

◆The processing technique called “"six points on one line" is applied, combined with three sets of bearing structure design to improve concentricity and adjustment for thermal expansion;

◆The improved version of the product has shown better performance in terms of concentricity, airtightness, strength, use effect and service life;

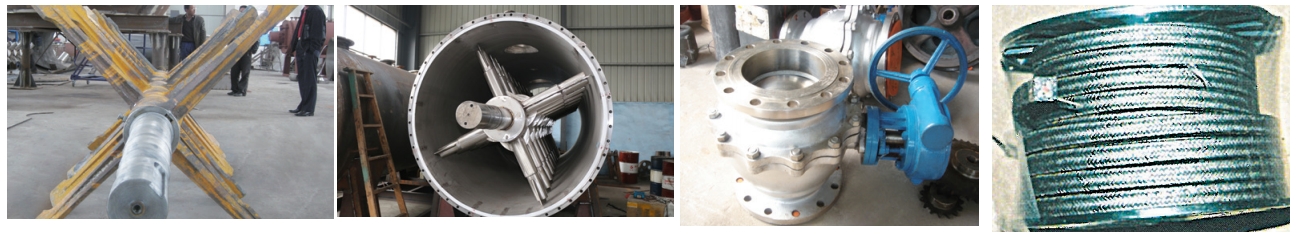

◆Different mixing paddle structures can be applied for different materials; the shaft canhave heating or cooling inside if necessary;

◆Our company has the ability to design and produce large vacuum paddle dryers up to 60m3 independently;

◆Depending on the characteristics of the material, batch or continuous operation can be applied under vacuum condition;

◆The forward and reverse operation can be applied depending on the characteristics of the material to forcefully extrude and disperse the bulk material;

◆Flexible starting method can be applied depending on the characteristics of the material and the requirements of the user;

◆Different sealing packings or shaft sleeves can be applied depending on the requirements of the user.

◆Sample valve, vibrator, explosion-proof mechanism, heat source and discharge valve can be applied depending on the requirements of the user.

Introduction

◆linling is a professional manufacturer of vacuum paddle dryers in China. This series of products are the second- generation products (new high-tech products) developed and designed by our company independently. Based on different technologies of vacuum paddle dryers used domestically and internatinally, we have made improvements to the processing techniques and structural designs for optimization and innovation.

Our company improves the design independently, owns many patents, and specializes in manufacturing.

Principle

◆This drying eQuipment is a new type of horizontal batch-style vacuum dryer, which has been improved according to the domestic and international technologies of paddle dryers. The moisture in the wet material is evaporated through heat conduction. A mixing device with the scrapper continuously removes the material from the hot surface. A circulating flow is formed inside the container. The water evaporated is discharged via a vacuum pump.
